Soundlink New technology products are launched at EUHA 2025
source：未知date：2025-09-29 10:12 views：

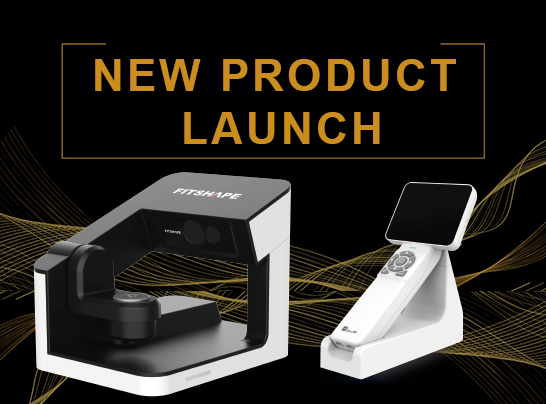

Fitshape S2 3D Ear Impression Scanner
As a leading 3D ear impression scanner company under Soundlink, Fitshape leverages core technologies from the deep integration of industry, academia, and R&D, along with a team of exceptional engineers.
The feature
1. FitShape S2 3D Ear Impression Scanner
A high-precision, fully automatic desktop scanning device specially developed for ear mold and shell production.
2. Using structured light technology
Quickly scan and model the ear impression surface The overall accuracy is ≤ 20μm.
3. Fully automatic calibration and scanning process
Combines accurate 3D scanning with effective order management. Provides users with simple and intuitive operation to improve production efficiency.
Product parameters
|
Technology: |
LED raster scannig |
|
Number of impression per scanning: |
1pc |
|
Scanning Time: |
Around 30s |
|
Scanning Accuracy: |
≤20um |
|
Output: |
STL/ASC/OBJ/PLY |
|
Certificate: |
CE, FCC |
|
Camera Parameters: |
1.3 million pixels |
√ Its exceptional performance has earned the stringent certifications of the world's Top hearing aid manufacturers, and support 3D lab, Hearing clinics all over the world.
Video Otoscope
Revolutionizing Ear Examination with Unmatched Clarity and Efficiency
The feature
1. High-Resolution Imaging
Captures crystal-clear images and videos of the ear canal, eardrum, and other delicate structures, enabling accurate diagnosis and detailed documentation.
2. Dual Photo & Video Modes
One-touch photography and long-press video recording simplify dynamic process tracking and key image retention for medical professionals.
3. Triple-Screen Synchronization
LCD + HDMI + UVC Display: Simultaneously view outputs on the device’s 3.5-inch TFT-LCD screen (optional touchscreen), an external TV/monitor via HDMI, and a computer via UVC connectivity.Ideal for collaborative diagnosis, training, and patient education.
4. Ergonomic Handheld Design
Lightweight, flexible, and user-friendly for both medical staff and patients. Ensures comfort during prolonged use while providing precise control.
Product parameters
|
Display mode: |
Three screens (LCD+HDMI+UVC) |
|
LCD resolution: |
3.5” TFT, touch screen (option) |
|
Sensor: |
1 million pixel CMOS image sensor |
|
Focus mode: |
Autofocus |
|
Image format: |
JPG (photo), AVI (video) |
|
Extended storage: |
Micro SD card, 16G (default) |
|
USB interface: |
Type-C |
|
Video output: |
Micro HDMI |
|
Lighting: |
Natural white (6 LEDS) |
|
Dimensions: |
210x90x75mm (without bracket and cable) |
|
Expected service life: |
5 years |
|
Internal power supply: |
Rechargeable lithium battery, 3.7V/2550mAH |
|
Operation time: |
3 hours |
|
Color: |
White, Blue |
Ideal for:
-
Clinics & Hospitals: Enhance diagnostic accuracy and patient communication.
-
Telemedicine: Share real-time visuals remotely for consultations.
-
Medical Training: Demonstrate procedures with high-quality visuals.
-
Home Use: Empower users to monitor ear health under professional guidance.
Elevate ear care with technology that bridges clarity, convenience, and collaboration!
