Features:

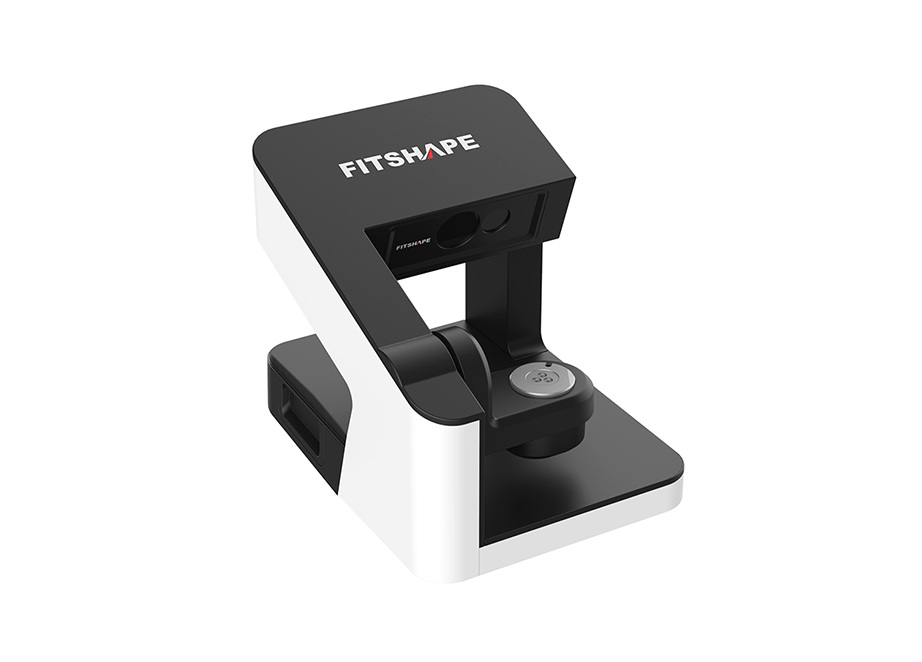

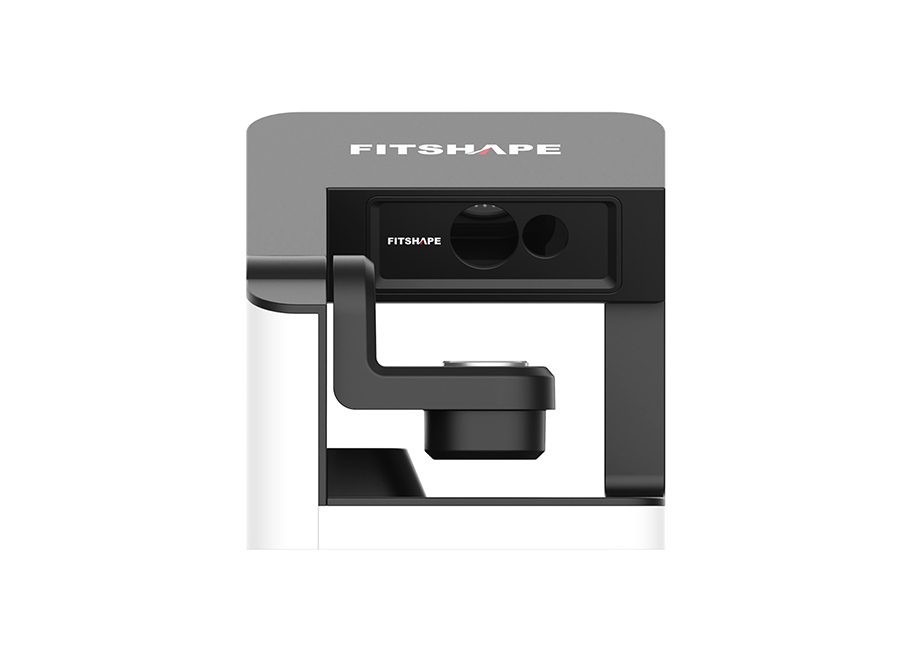

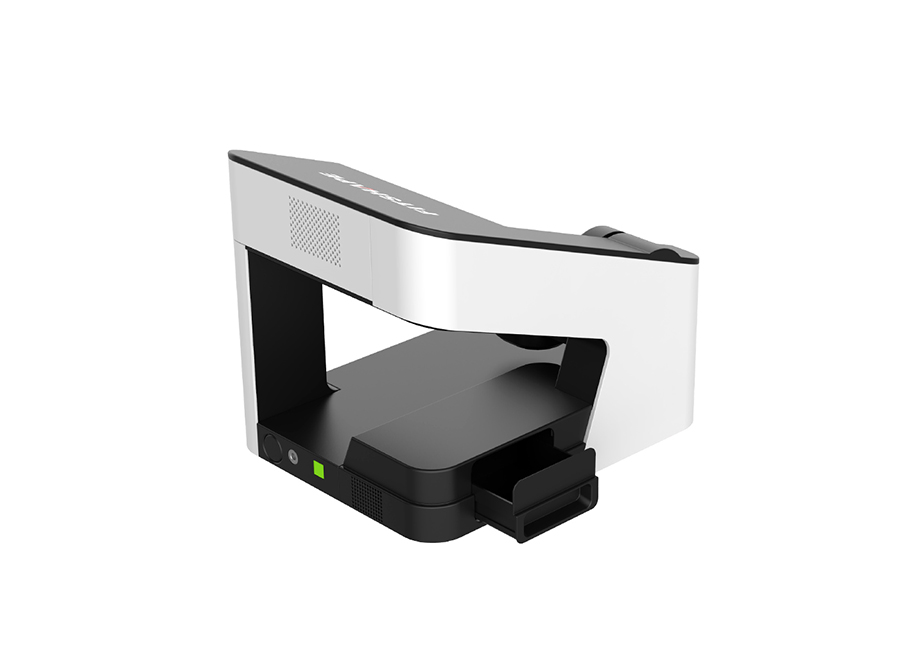

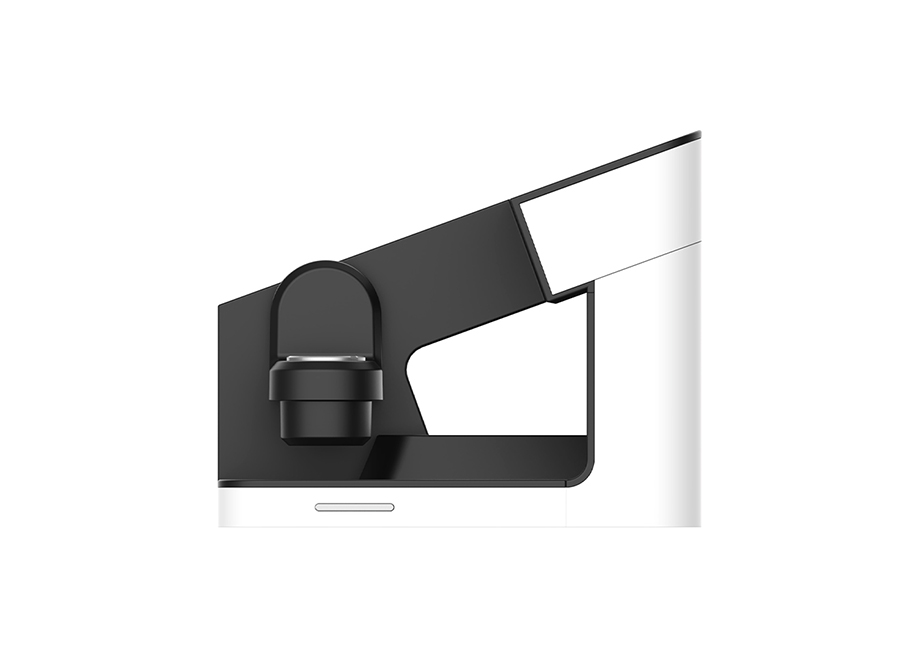

1. FitShape S2 3D Ear Impression Scanner
A high-precision, fully automatic desktop scanning device
specially developed for ear mold and shell production.
2. Using structured light technology
Quickly scan and model the ear impression surface
The overall accuracy is ≤ 20μm.
3. Fully automatic calibration and scanning process
Combines accurate 3D scanning with effective order management
Provides users with simple and intuitive operation to improve production efficiency.
Product parameters:
| Technology: | LED raster scanning |
| Number of impression per scanning: | 1pc |
| Scanning Time: | Around 30s |
| Scanning Accuracy: | ≤20um |
| Output: | STL/ASC/OBJ/PLY |
| Certificate: | CE, FCC |
| Camera Parameters: | 1.3 million pixels |
| Dimensions: | 305x240x250mm |
| Weight: | 5kg |
Configuration requirements:
CPU: Intel Core i5 (or higher）
System: Operation system Windows10 or Windows11
Graphic card: Graphic card Independent
NVIDIA GTX750 or higher
Memory: 8GB or higher
Connector: One USB 3.0 for the scanner
Attention: Turn off all firewalls
